Specifications

Suitability

Lockwood Digital DX Locksets suitable for public, commercial, industrial and residential applications

Available in the following finishes

• Polished Brass (PB)

• Satin Chrome (SC)

Mechanical Digital DX Locks range includes

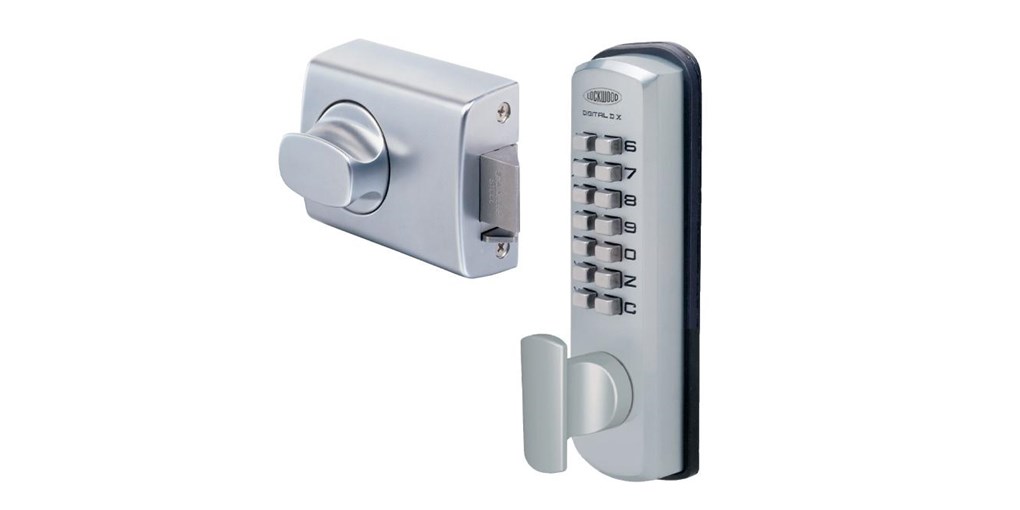

• 002 Digital DX Deadlatch

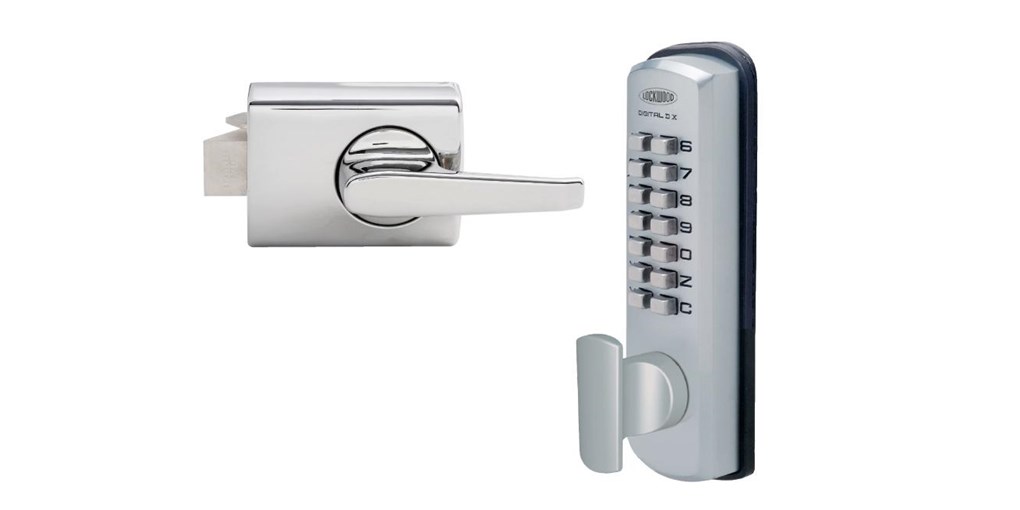

• 002 Digital DX Deadlatch with Lever

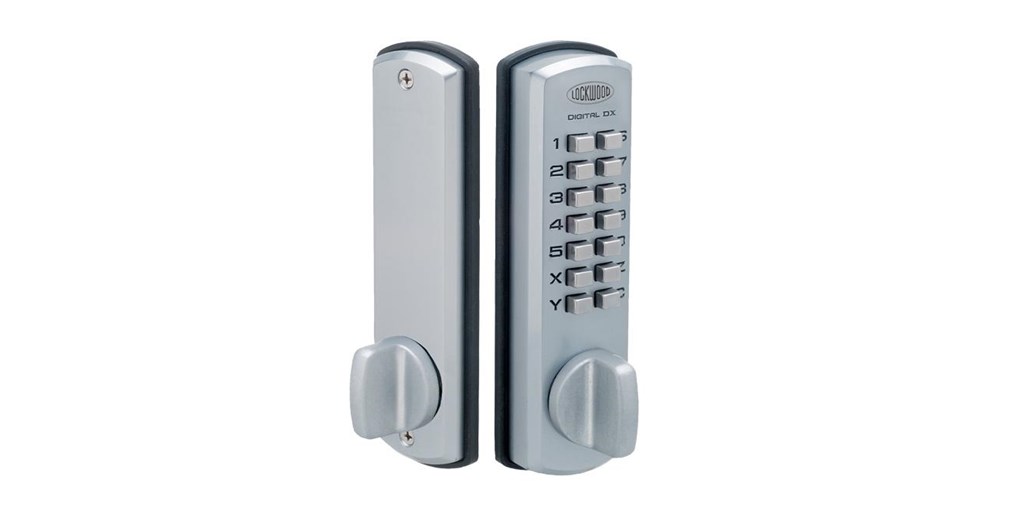

• 530 Digital DX Entrance Set

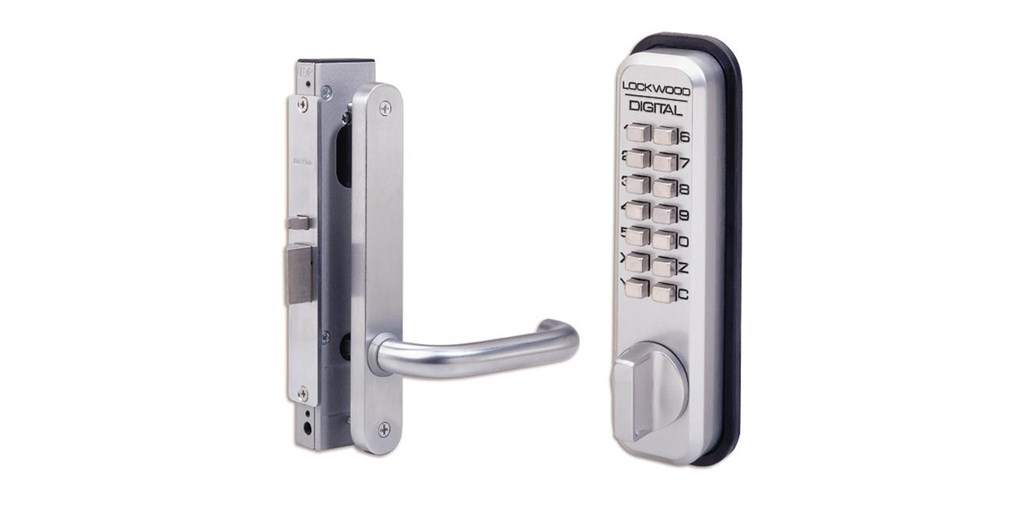

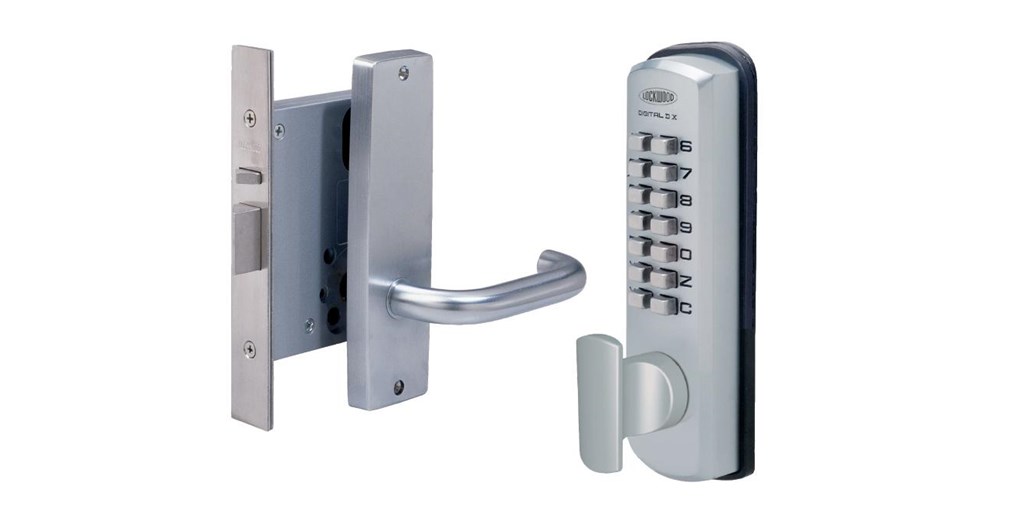

• Mortice Digital DX Lockset

• 3582, 3592 Short Backset Digital DX Locksets

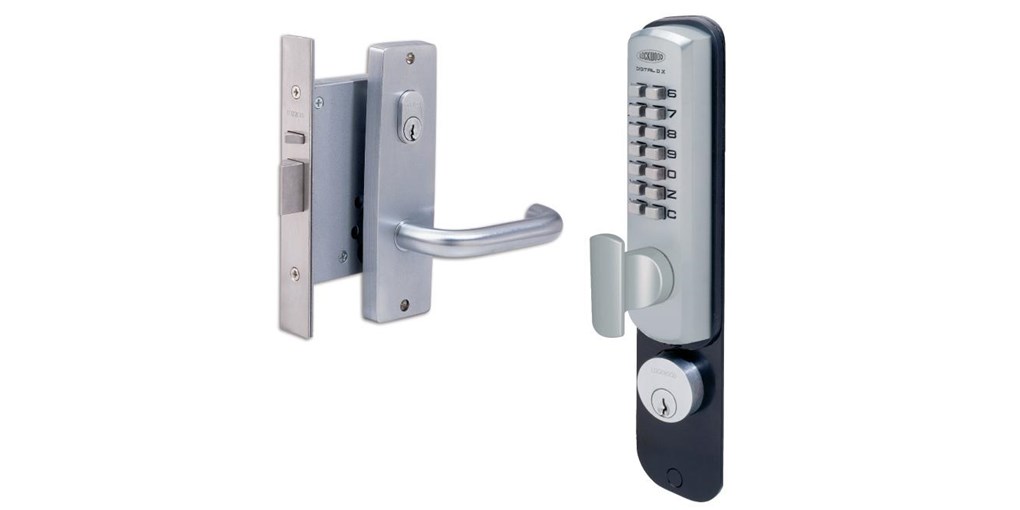

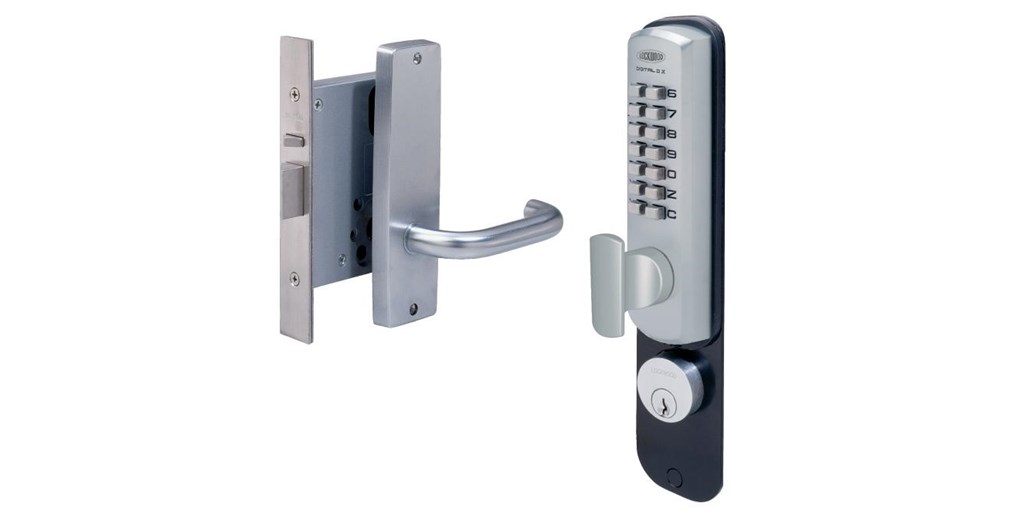

• 3572 Key Override Digital DX Lockset

• 3572 Key Override & Code Lockout Digital DX Lockset

Lockwood Mechanical Digital DX Locksets provide keyless access into residential and commercial areas. They are also designed to control access into residential and commercial buildings and areas, especially when frequent combination changes are needed to maintain security.

Features

• Keyless entry

• Mechanical operation - no wiring required

• Inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock

• Simple, cost-free changing of the digital code combination

• Selected Lockwood Mechanical Digital DX Series Locks fire rated up to 4 hours on fire door assemblies

Ordering

002DX Digital Deadlatch Display Pack

60mm Backset Deadlatch

L002-1KDXSCDP

530DX Digital Lockset

60mm Backset Deadlatch

L530DXSCDP

60mm Backset Deadlatch

L530DXSC

530DX Digital Double Keypad Lockset

Double Keypads - 60mm Latch

L530DXSC/PADSX2

3582DX Digital Lockset

23mm Lockset & Digital Mechanism L/H

L3582DXLSC

23mm Lockset & Digital Mechanism R/H

L3582DXRSC

Internal Furniture

L4905/70SC

3572DX Digital Lockset

60mm Lockset & Digital Mechanism L/H

L3572DXLSC

60mm Lockset & Digital Mechanism R/H

L3572DXRSC

Internal Furniture

L1905/70SC

Double Keypad L/H

L3572DXLSC/PADS2

Double Keypad R/H

L3572DXRSC/PADS2

3572DX Digital Lockset Key Override

60mm Lockset & Digital Mechanism L/H

L3572DXKOLSC

60mm Lockset & Digital Mechanism R/H

L3572DXKORSC

Internal Furniture

L1901/70SC

Accessories

Keypad 002/3572/3582

LSPDX-50SC

Keypad 530 (External)

LSPDX-20SC

Keypad 530 (Internal)

LSPDX-220SC

Fixing Screws, 33-45mm Door

LSP930-108ZP

Fixing Screws, 46-65mm Door

LSP30-208ZP

Latch 530DX 60mm Backset (STD)

L530-12SC

Latch 530DX 70mm Backset

L530-222SC

530DX Internal Plate

LSPDX-30SC

Mounting Plate 002DX

LSPDX-520

Mounting Plate 3572DX

LSPDX-324

Mounting Plate 3582DX

LSPDX-320

Spindle 0022/3572/3582

LSP10000-138ZP

Spindle 530 Twin Keypad, 33-45mm

LSP10000-1127ZP

Spindle 530 Twin Keypad, 46-65mm

LSP10000-1227ZP

Spindle 530, 33-45mm Door

LSP10000-127ZP

Extd Spindle 530, 46-55mm Door

LSP10000-627ZP

Extd Spindle 530, 56-65mm Door

LSP10000-727ZP

Blue Tumblers

LSPDX-43

Red Tumblers

LSPDX-42

Downloads

530 Installation Instructions

Lockwood DX Digital Service Manual
