SKU : 1328

Specifications

Door Thickness - 32 to 50 mm. Doors greater than 50 mm will require accessories with extended lengths
Handing - Reversible
Backset - 23 mm standard backset. Extended backsets 25.4, 30 and 38 mm are available on application.
Case - High purity zinc alloy case and back plate.
Bolt - 15 mm stainless steel.
Input Voltage - multi voltage between 12V to 24V
Security - All 3580 Series Electric Mortice Locks conform with Level S2 (Physical Security) Australian Lock Standard (AS 4145.2: 1993).* * When used with a high security keying system such as Lockwood V7. Level S2 applies with lower security keying systems.
Standard Finishes - Bright Chrome, Florentine Bronze, Polished Brass, Satin Chrome

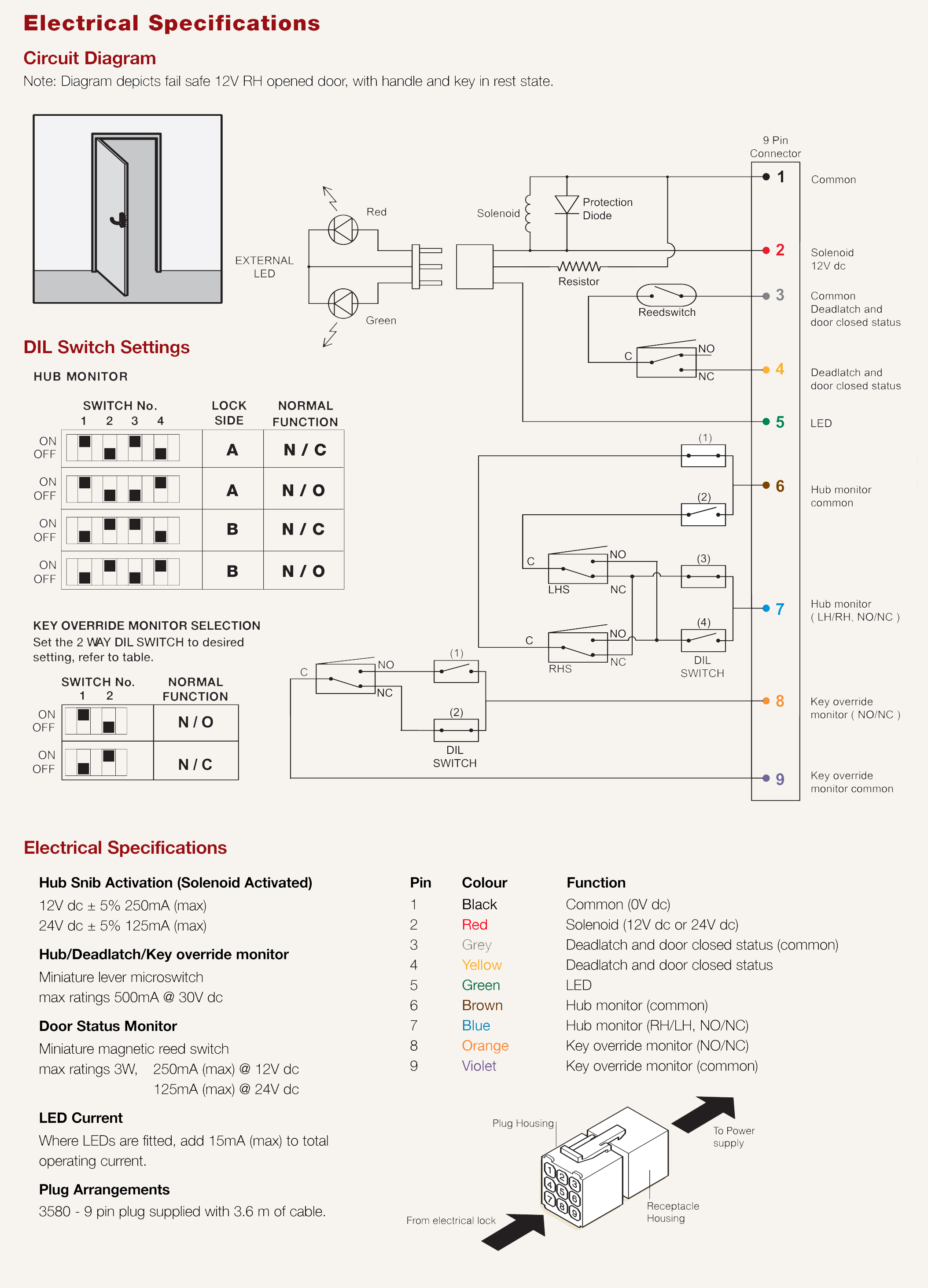

Click here to view electrical specifications
