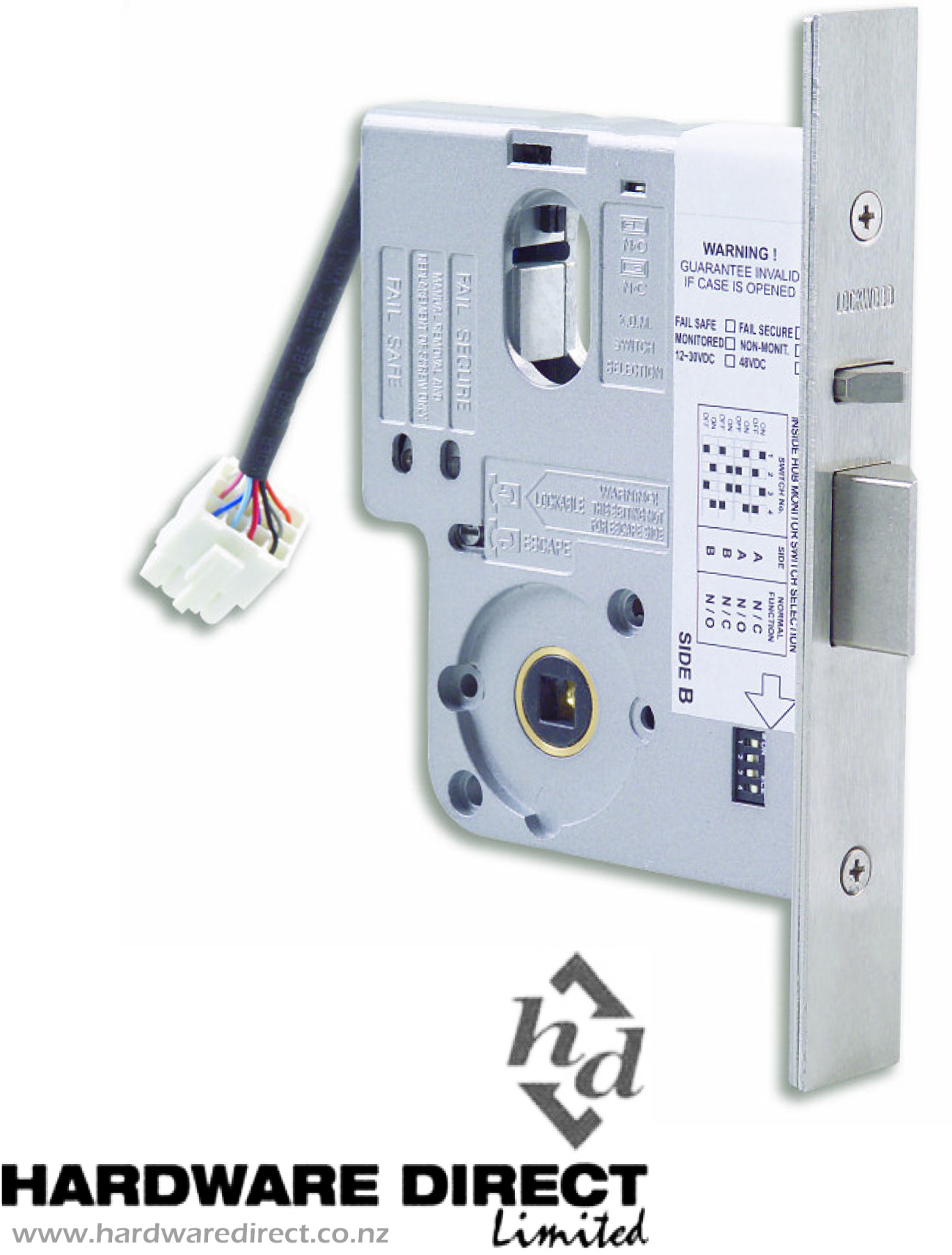

SKU : 1327

Specifications

Door Thickness - Standard applications 32 to 50 mm.
Handing - Reversible
Backset - 60 mm standard, 89 and 127 mm available on application.
Case - High purity zinc alloy case and back plate.
Bolt - Standard stainless steel fire rated up to 4 hours.
Input Voltage - Multi voltage between 12V to 24V
Patent Protection - The following features are protected by patents in Australia and overseas:
Hub selection
Cylinder fixing
Hub monitoring
Deadlocking monitoring

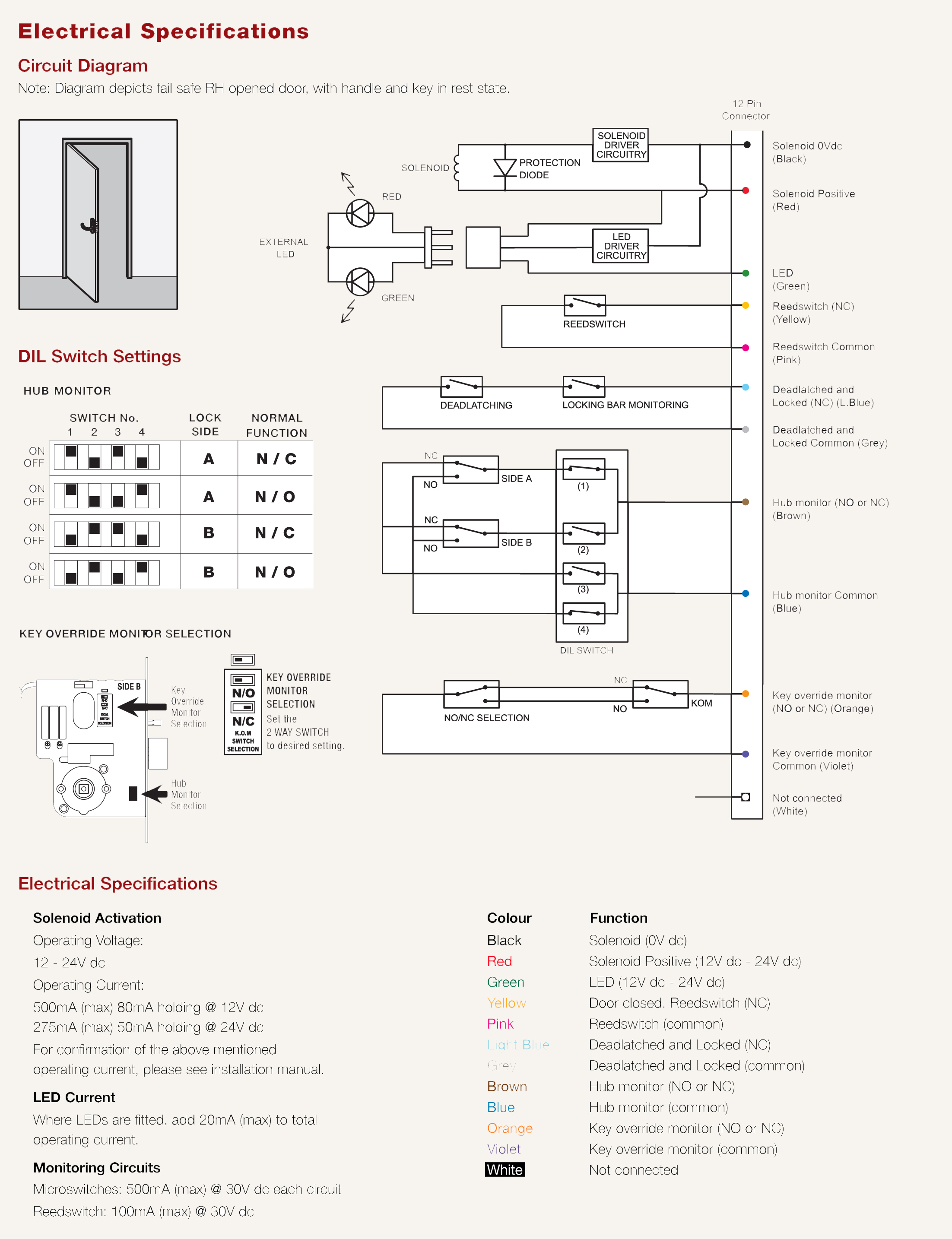

Click here to view Electrical Specifications
