Specifications

The Kaba 740 Series is a high quality, cost effective range of round rose door furniture, featuring a larger rose, for commercial and domestic applications.

Overview

Kaba 740 Series levers are mounted on a 65mm round rose projecting 12mm from the door and are designed for use with Kaba mortice locks and latches and are also compatible with similar locks and tubular latches. Also designed for retro fitting over 54mm holes.

Features

Construction
The 740 Series is constructed from a zinc die-cast rose, a brass dress ring, a corrosion resistant stainless steel cam and a steel wire torsion spring. Levers are made from a combination of zinc die cast or solid forged brass.

Fire Rating
All 740 Series Lever Handles are Fire Rated and comply with Australian Standard AS1905-1-2005 Part 1.

Disabled Access
A selection of 740 Series Lever Handles comply to AS1428 - Design for access and mobility. Please refer to the catalogue section for exact models.

Finishes
Satin Chrome Plate SCP
Chrome Plate CP

Technical Data

Dimensions
65mm diameter (overall, 68mm including dress ring), 12mm thick rose, and 41mm fixing centre with a suitable mortice lock or latch - sold separately.

Fixing
Designed with a concealed fixing secured back to back by two M4 cross recessed countersunk screws in an optional vertical or horizontal fixing pattern.

Handing
Roses are non-handed and in most cases the levers can be reversed.

Door Thickness
Standard models are designed to suit a 32mm-50mm thick door as standard.

Specification
Refer to Documents or Downloads.

Functionality

Standard
Sold as a pair including spindle and fixing screws - less latch.
Privacy
Sold as a pair including spindle, fixing screws and a 60mm privacy latch.
Half Set
Sold as a pair 740H-**
Fixed Lever
Sold as a pair 740F-**

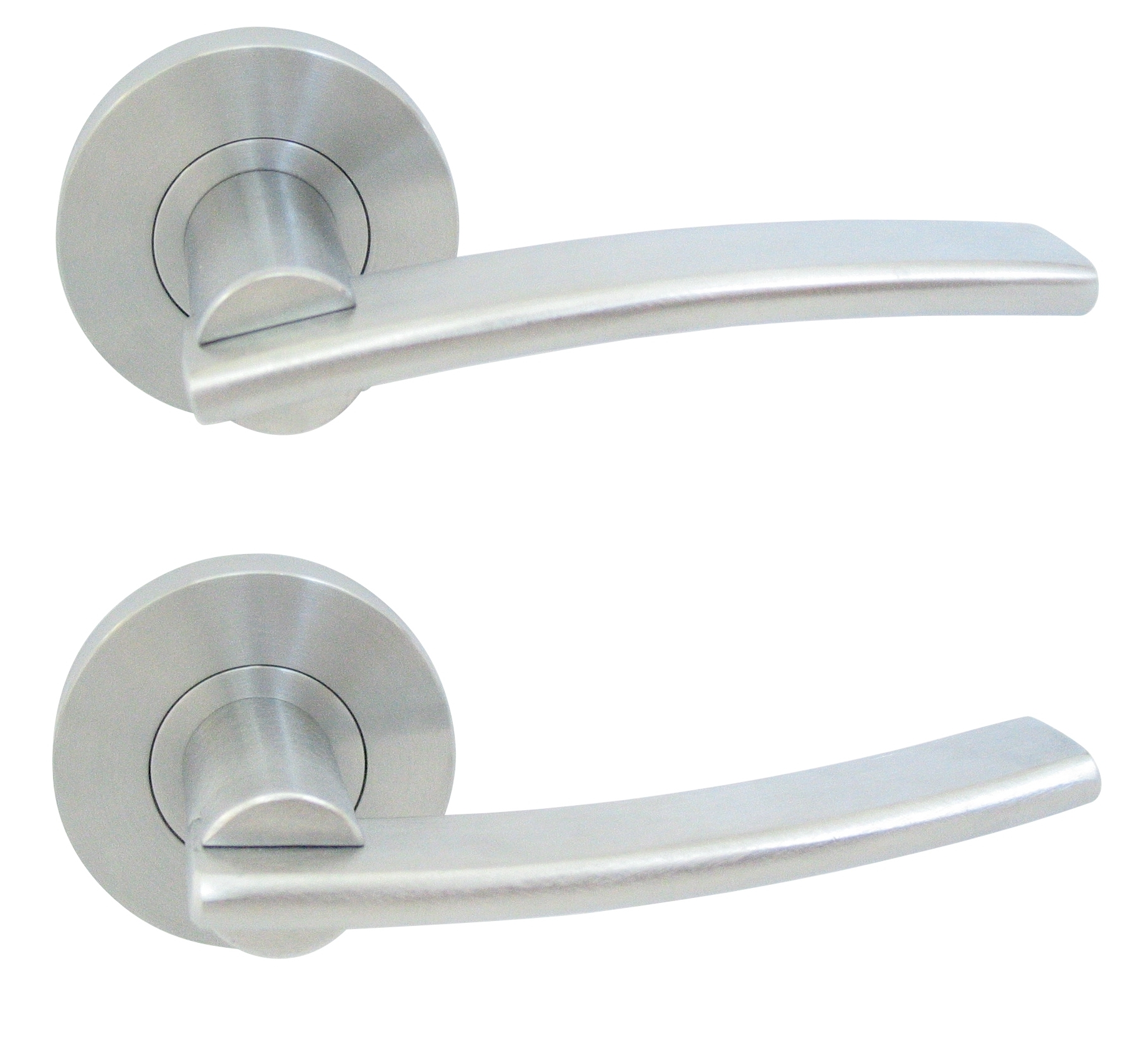

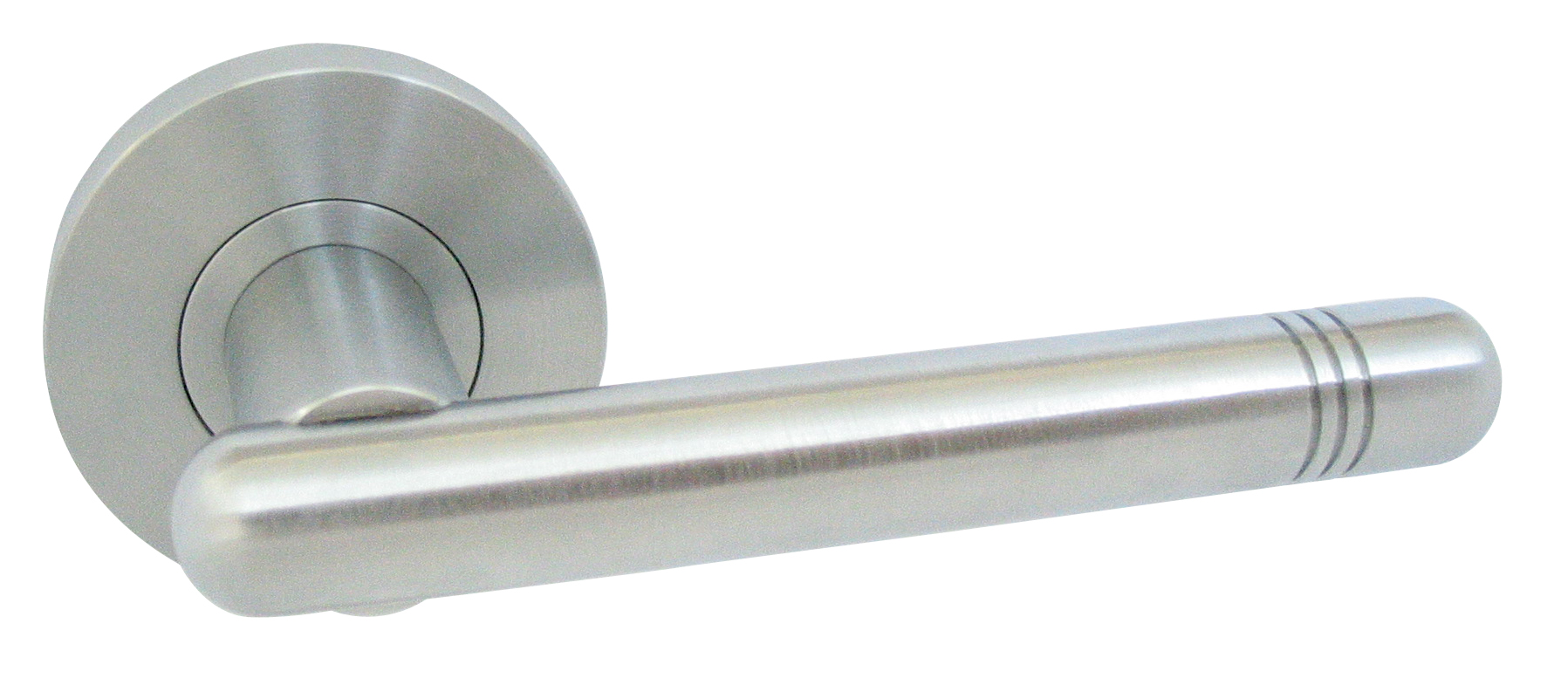

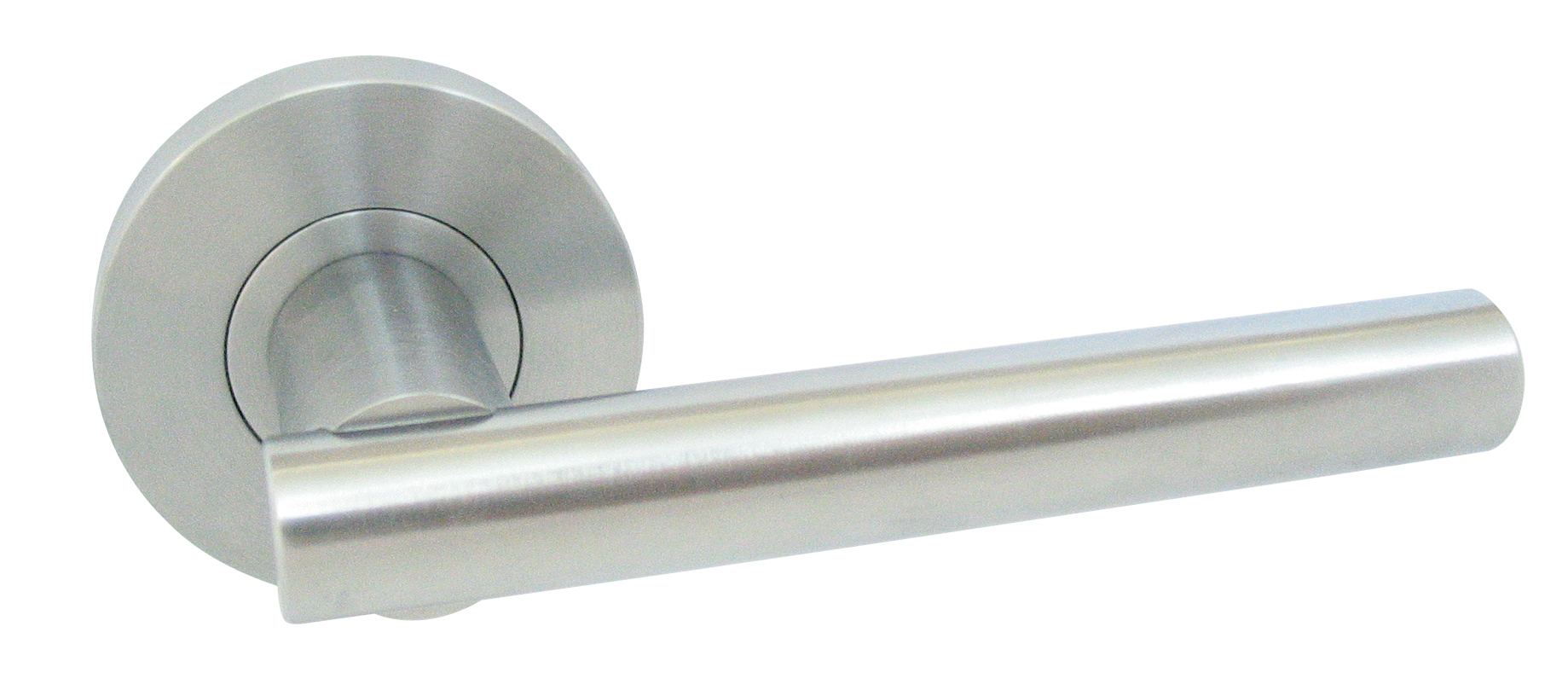

740-02	740-05-50	740-11

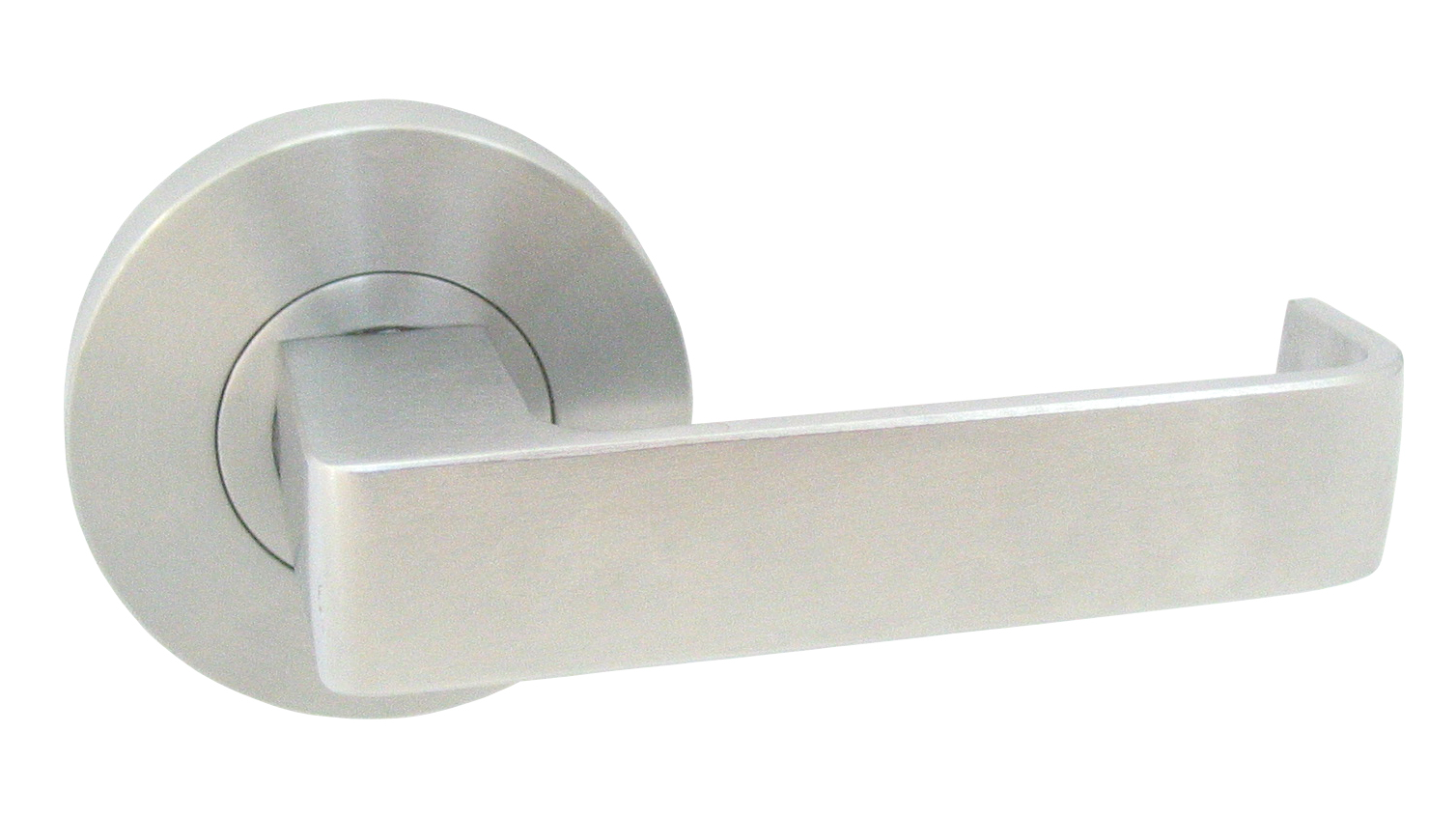

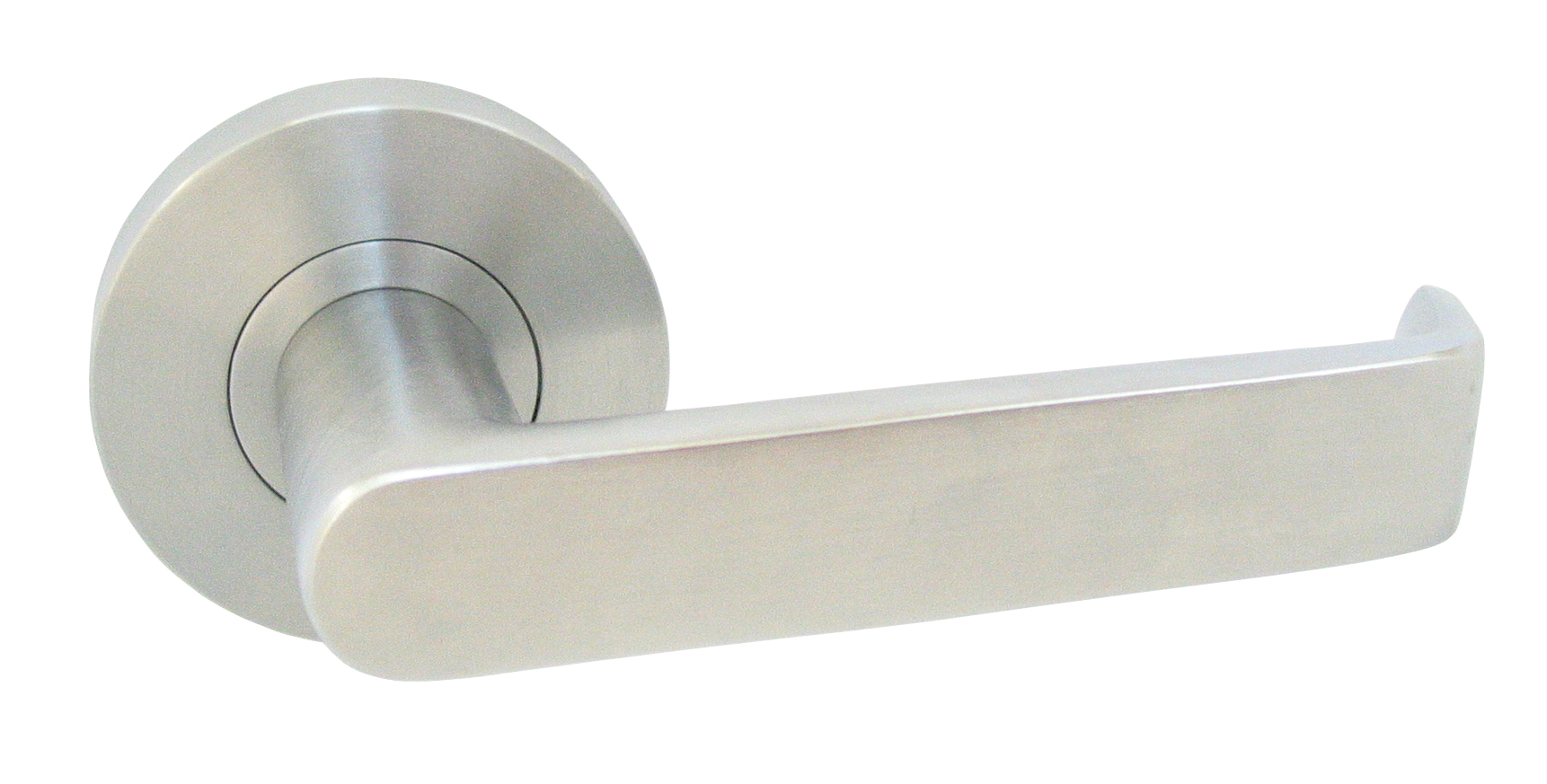

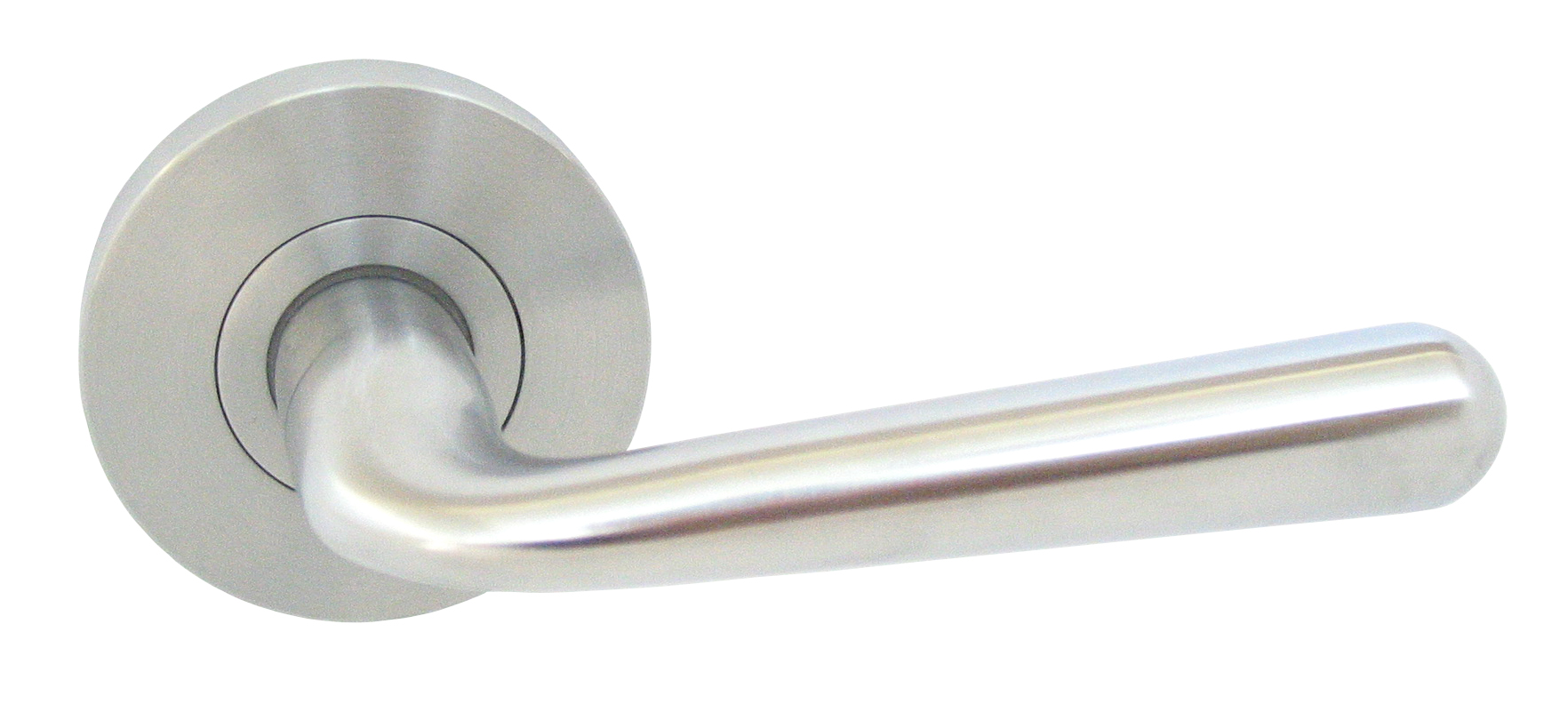

740-18	740-30	740-32

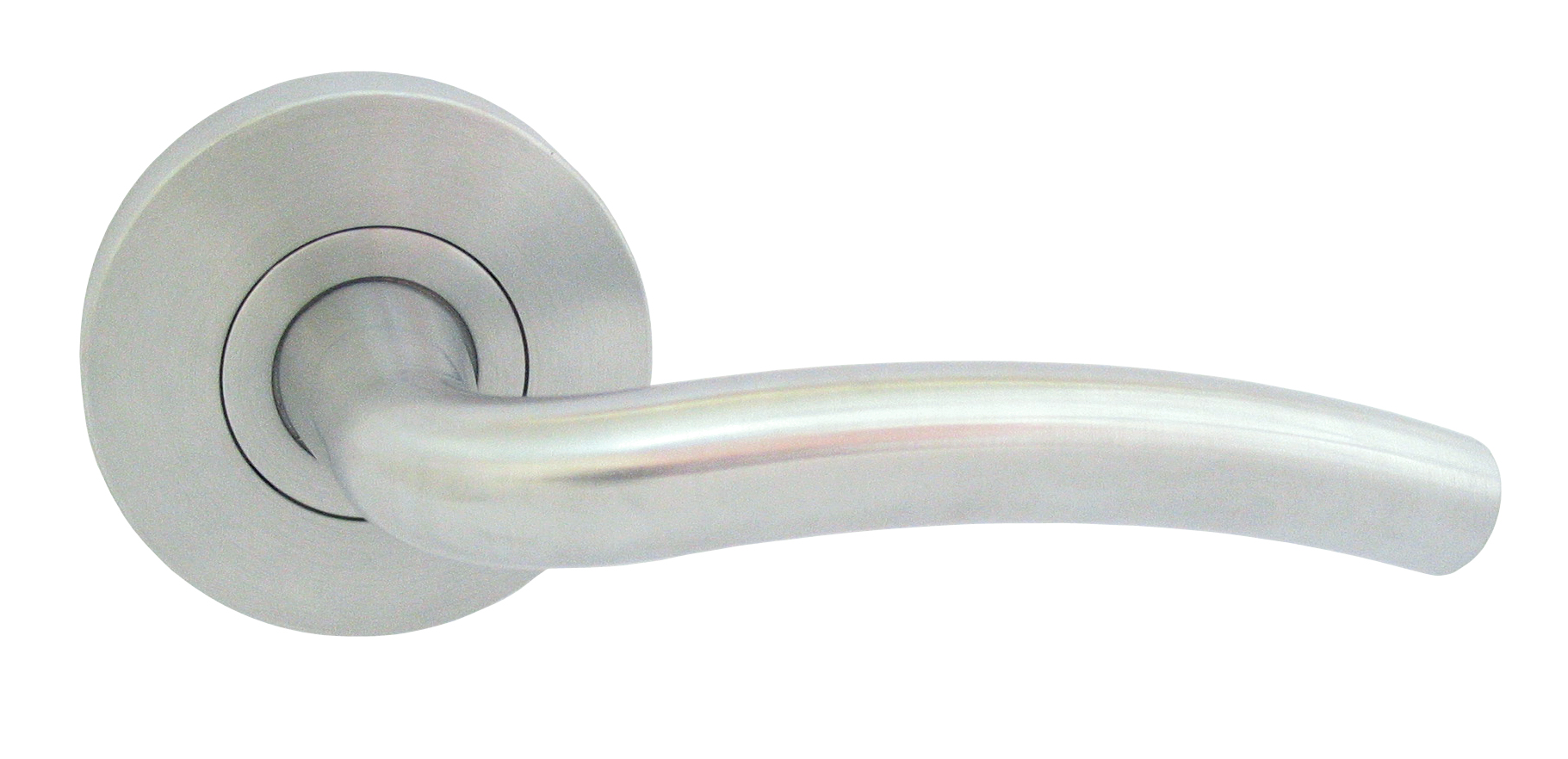

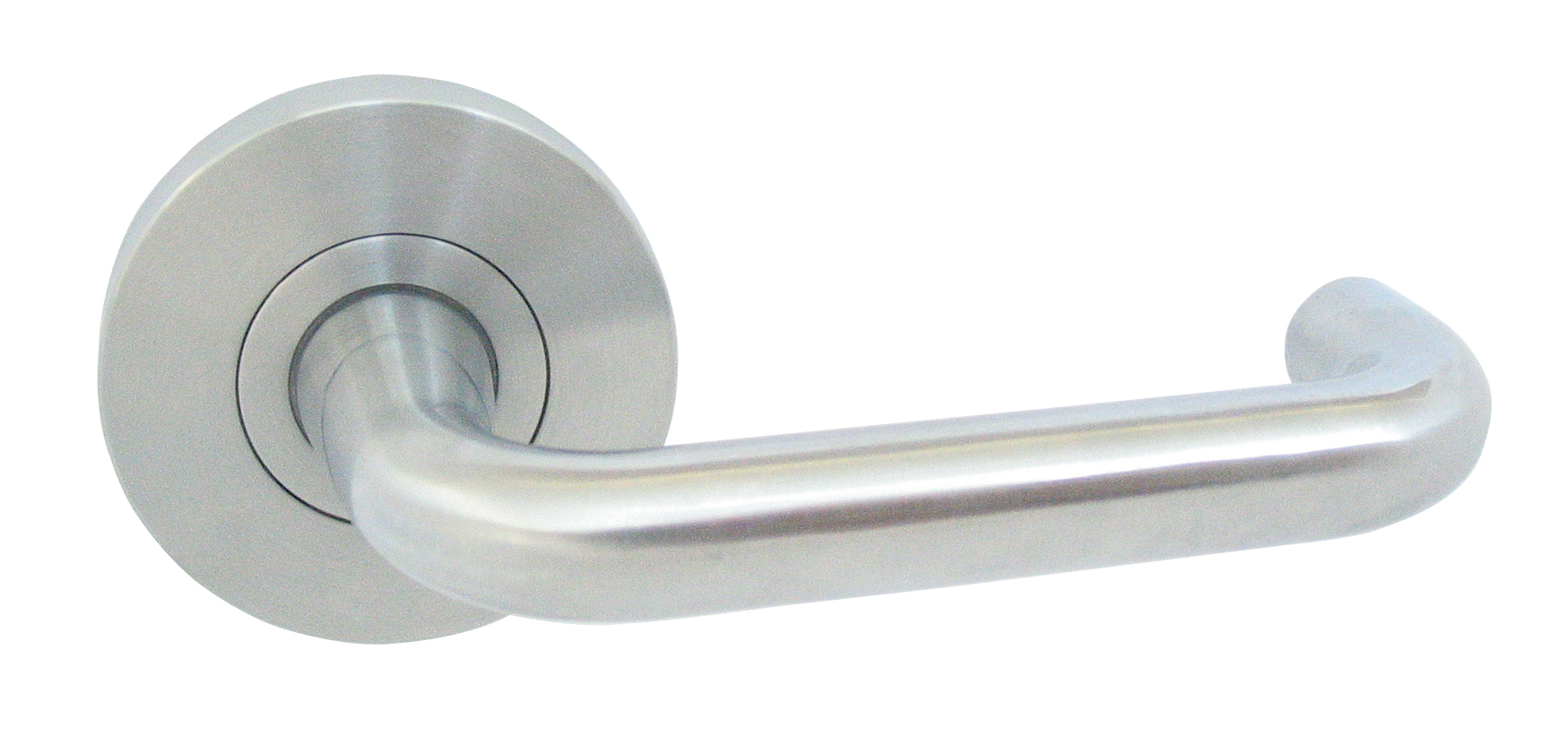

740-33	740-34	740-35

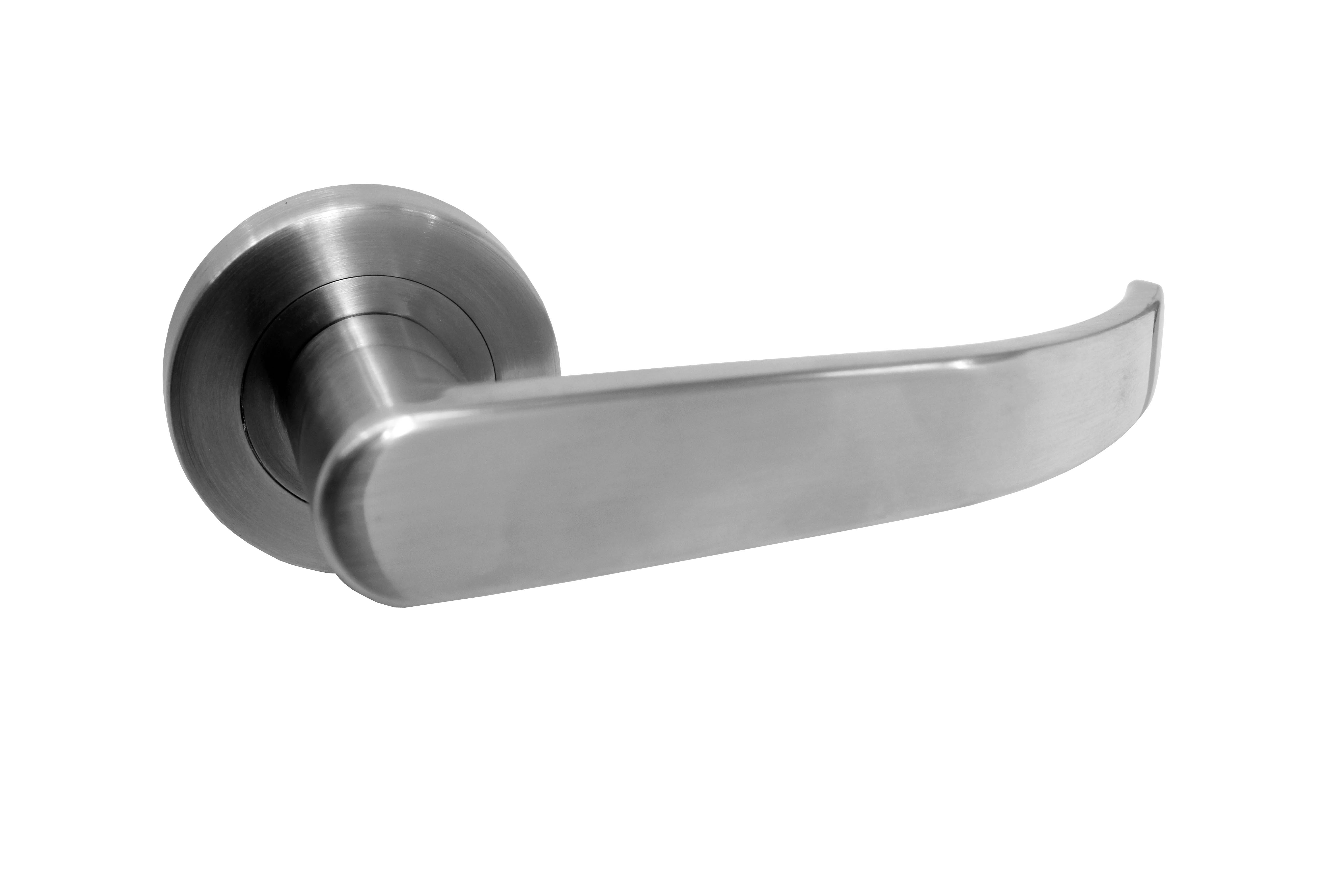

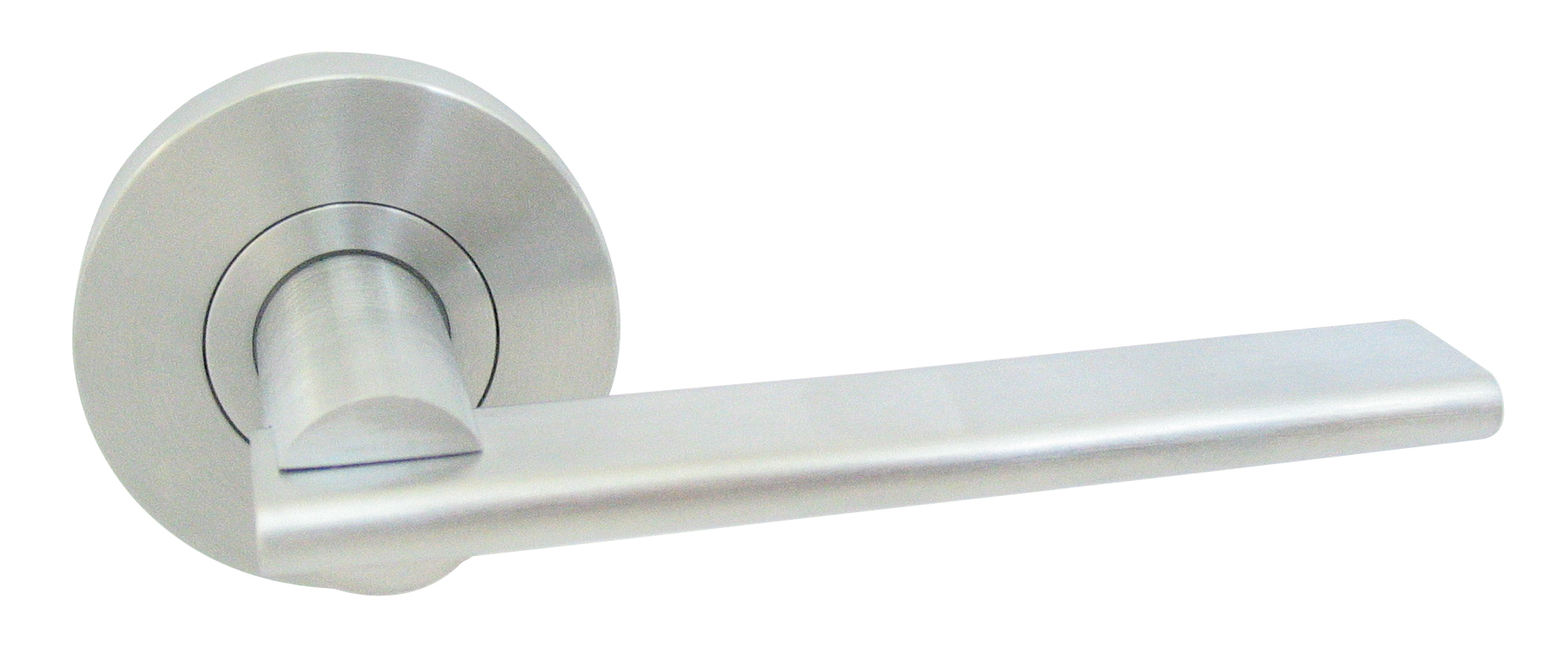

740-36	740-45-50	740-66

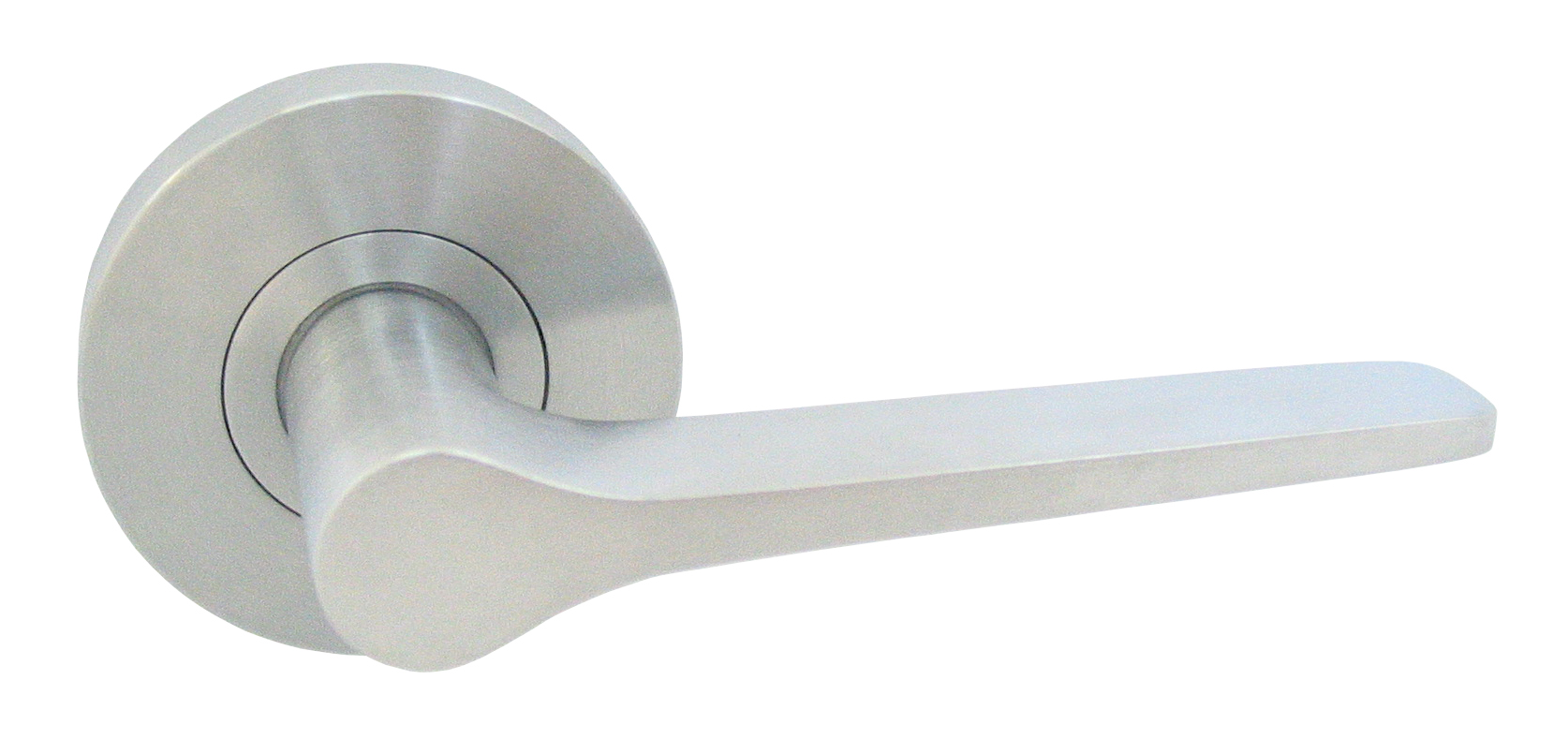

740-72	740-96
