Specifications

The Trimec ES6000 surface mounted Hook Lock has been designed with the architect n mind. The ES6000 has case aluminium cover that can be supplied in a variety of colours to match existing door frames. The lock is suitable for swinging doors, sliding doors and is easily attached to wood or steel door frames. On a standard 2040mm door frame this low profile lock complies with the minimum headroom requirement as stipulated in the Building Code of Australia. With its high preload (side load) capability (up to 300kg), high holding force (up to 700kg), up to 4 hour fire rating, ES6000 Hook Lock is ideal for fire door and escape route applications and anywhere where a mortice mount version for a sliding door application is suitable

Electrical Specification - Supply voltage 12-30 vdc Ground (OV)
12vdc - 250mA after 1 sec. (initial current 830 mA)
24vdc - 140 MA after 1 sec. (initial current 530 mA)
Monitoring - Door Locked (solenoid)  Door Closed (latch)
Warranty - Covered by Trimec's 5 year warranty
Certification - CE compliant up to 4-hours fire rating, depending on type of doorset (in accordance with AS1905.1-1997, Part 1: Fire-resistant Doorsets)
Performance - Tested and conforms to the relevant requirements of AS4145.2, levels D3 and S3 standard UL 1034 Tested for: 1,500 lbs. (680kg) static strength rating 70 foo-lbs. dynamic strength rating 250,000 cycles endurance rating

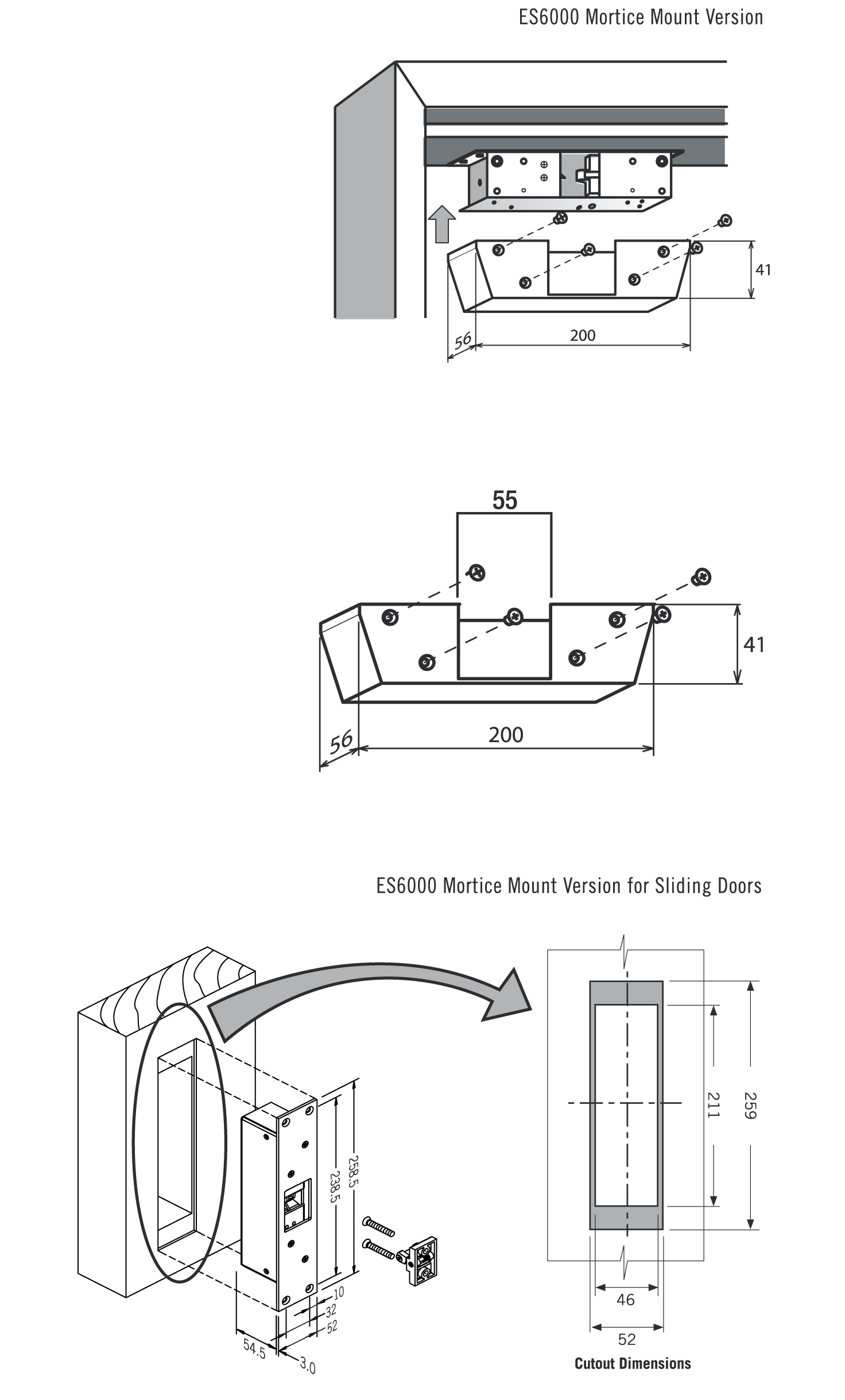

Versions available - ES6001 Power to Lock (fail safe). ES6002 Power to Open (fail secure) Surface mount version with coloured aluminium cover. Motice mount version with stainless steel face plate
